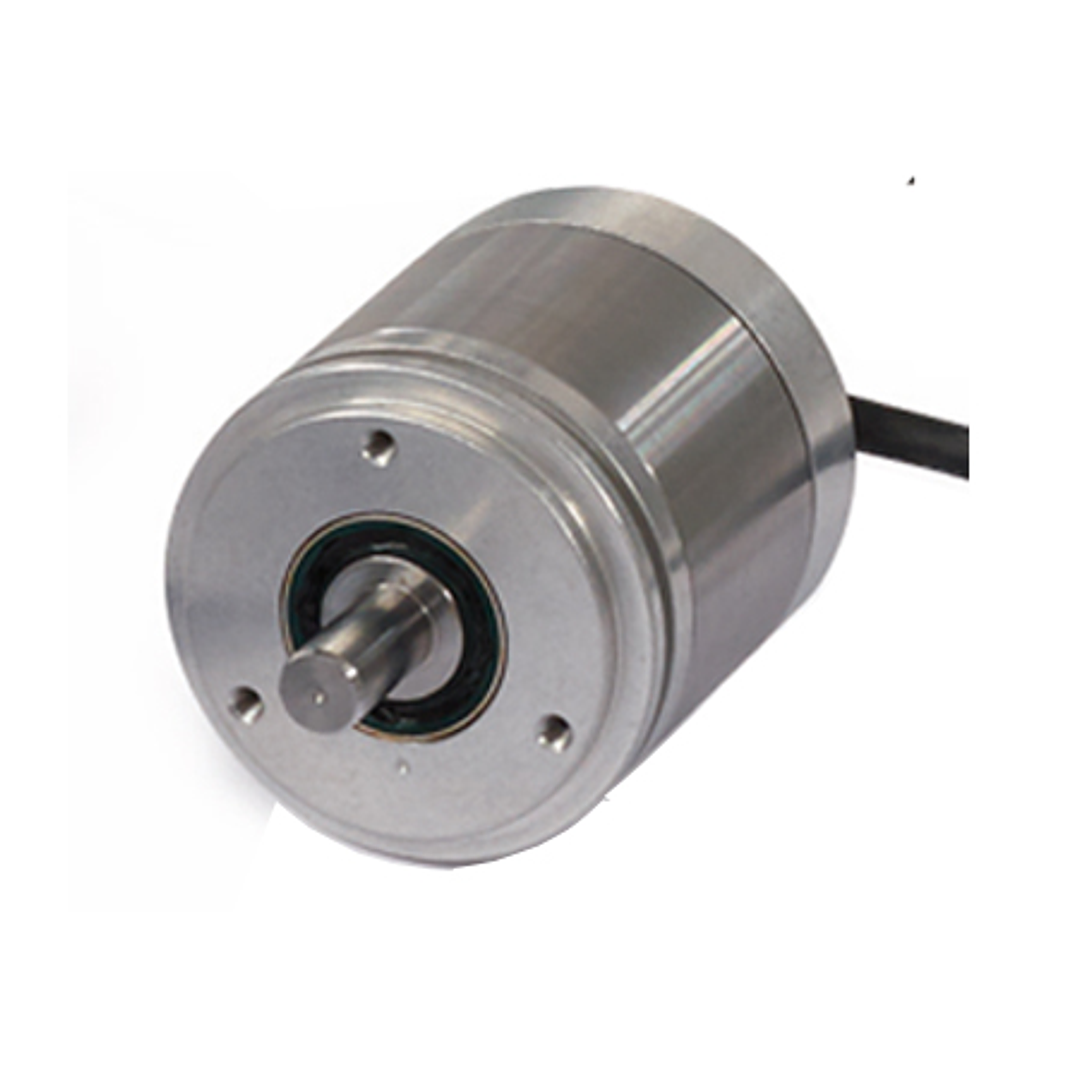

ROD 426
Incremental rotary encoder with integral bearing for separate shaft coupling
Technical data
ID number: 376846-01
Line count: 5000
Output signal: TTL
Max. scanning frequency: 300.00 kHz
Power supply: 5 V (+-10 %)
Flange version: Synchro flange Ø 58 mm, centering collar 50 mm, bolt circle Ø 42 mm, 3 x M4 Shaft: Solid shaft, diameter 6 mm, length 9.5 mm
Protection rating: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: free cable end
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
Special characteristics, rotational encoders: none
SCIP ID: 6cf3af70-75be-4b7e-a2aa-206549a43e49
